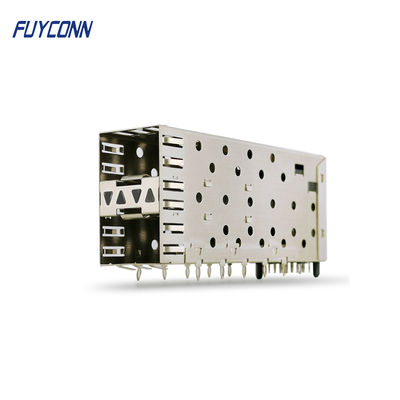

2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

Name: 2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit
Brand: Dongguan Fuyconn Electronics Co,.LTD
SKU: FUYSFP2010-28
Price: 15 USD
Availability: InStock

Wszystkie produkty

Złącze Centronics
(204)

Złącze DIN 41612
(170)

Złącze SCSI
(67)

50 pinowe złącze Centronics
(57)

36 pinowe złącze Centronics
(20)

64-pinowe złącze Centronic
(28)

Złącze routera V.35
(11)

Złącza D-Sub
(66)

Zespół kabli IDC
(14)

Złącze zaciskane IDC
(31)

Złącze Champ
(91)

Złącze IEEE 1284
(33)

Złącze RJ45
(9)

Złącze portu równoległego
(44)

Złącze żeńskie PCB
(49)

Męskie złącze PCB
(28)

Złącze pinowe
(36)

Złącze karty
(17)

Złącze SFP
(16)

Orzecznictwo

Chiny Dongguan Fuyconn Electronics Co,.LTD Certyfikaty

Im Online Czat teraz

2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

Duży Obraz : 2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

Szczegóły Produktu:

Miejsce pochodzenia:	Guangdong, Chiny
Nazwa handlowa:	FUYCONN
Numer modelu:	FUYSFP2010-28

Zapłata:

Minimalne zamówienie:	100
Cena:	$15

Kontakt

2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

Opis

Materiał kontaktowy:	Mosiądz	Płeć:	Kobieta, Kobieta
Liczba terminali:	40 PIN	Liczba portów:	2*1 podwójne porty
Kolor:	Nick Silver	Materiał izolatorowy:	PBT
Kołek stykowy Materiał:	Brąz fosforowy	Typ stóp:	Naciśnij szpilkę
Rury świetlne:	z lekką rurą	Obecna ocena:	1AMP
wytrzymać napięcie:	500 V przez minutę	Rezystancja izolatora:	500 mΩ min (w DC500V)
Odporność na kontakt:	35 mΩ Max	Temperatura pracy:	-55°C do +105°C
Prędkość danych:	do 4,25 GB/s
Podkreślić:	2x1 female SFP connector with light pipe , 40 pin press-fit SFP connector , female SFP connector with press-fit

2x1 Female SFP Connectors with Light Pipe Press-Fit Stackable Multi-Port Housing Shielded Cage Connector

Product Overview

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in early 2000 to replace GBIC connectors, SFP connectors offer greater port density while supporting up to 4.25Gb/s according to IEEE 802.3 and SFF-8472 specifications. The SFP+ variant, introduced in 2006, extends this capability to 10Gb/s while maintaining the same form factor.

Key Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Contact Type:	Small Form-factor Pluggable
Number of Positions:	40pin
Ports:	2x1 (2 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet

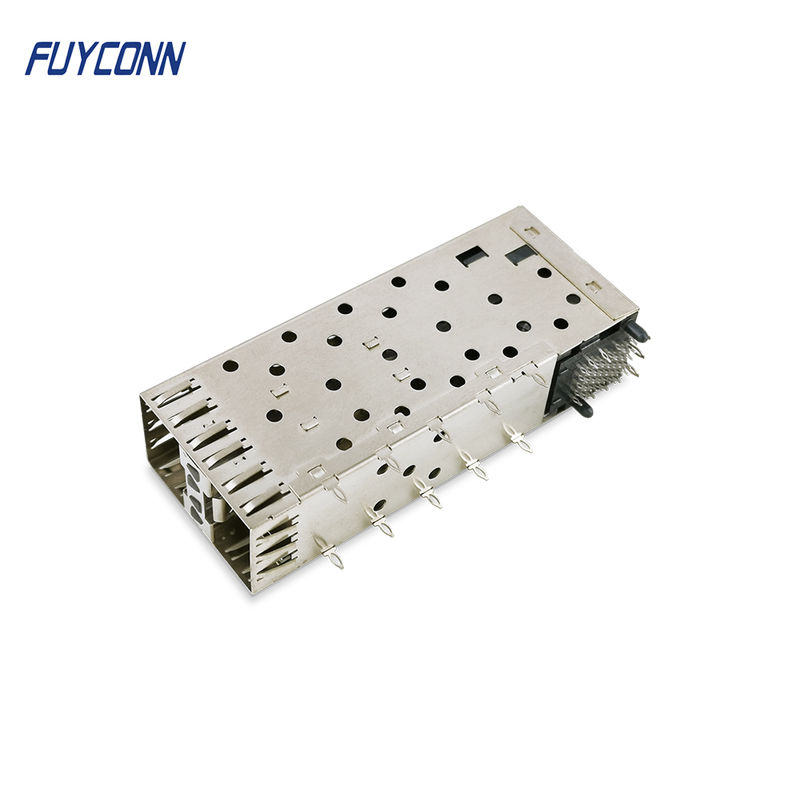

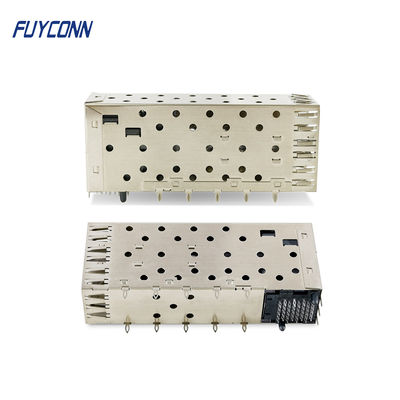

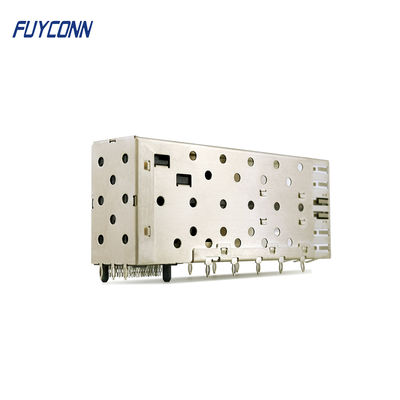

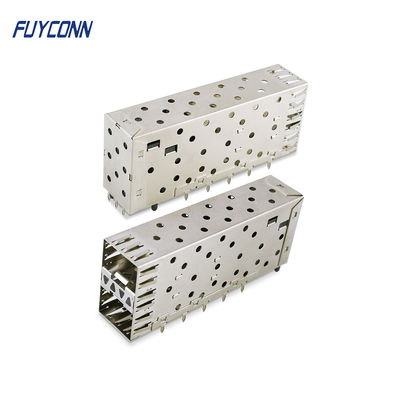

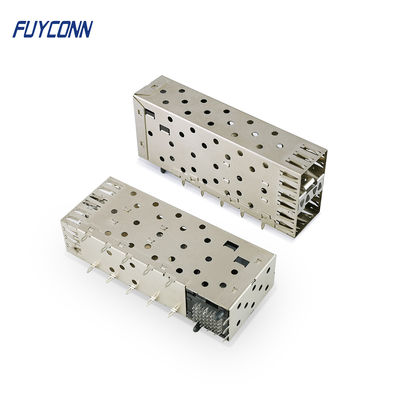

Product Images

Packaging & Shipping

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for your choice.

Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers 5,000 square meters with dedicated R&D, molding, plastic injection, stamping, and assembly facilities.
