2x1 Ports SFP Female Connector 40 Pin Press-Fit PCB Mount

Name: 2x1 Ports SFP Female Connector 40 Pin Press-Fit PCB Mount
Brand: Dongguan Fuyconn Electronics Co,.LTD
SKU: SFP2009-28
Price: 15 USD
Availability: InStock

Wszystkie produkty

Złącze Centronics
(204)

Złącze DIN 41612
(170)

Złącze SCSI
(67)

50 pinowe złącze Centronics
(57)

36 pinowe złącze Centronics
(20)

64-pinowe złącze Centronic
(28)

Złącze routera V.35
(11)

Złącza D-Sub
(66)

Zespół kabli IDC
(14)

Złącze zaciskane IDC
(31)

Złącze Champ
(91)

Złącze IEEE 1284
(33)

Złącze RJ45
(9)

Złącze portu równoległego
(44)

Złącze żeńskie PCB
(49)

Męskie złącze PCB
(28)

Złącze pinowe
(36)

Złącze karty
(17)

Złącze SFP
(16)

Orzecznictwo

Chiny Dongguan Fuyconn Electronics Co,.LTD Certyfikaty

Im Online Czat teraz

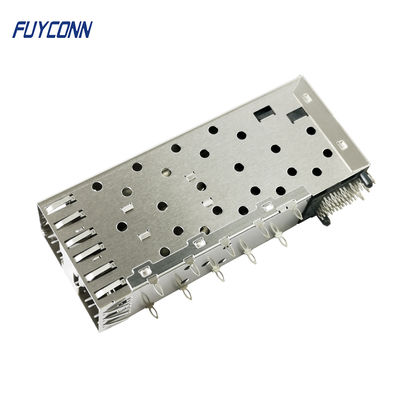

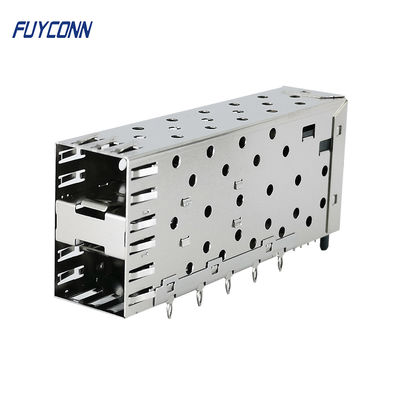

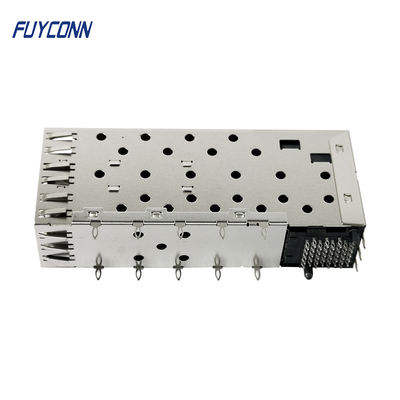

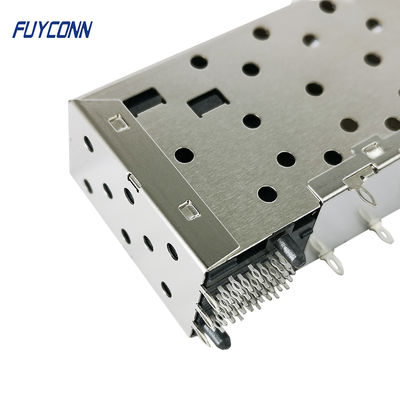

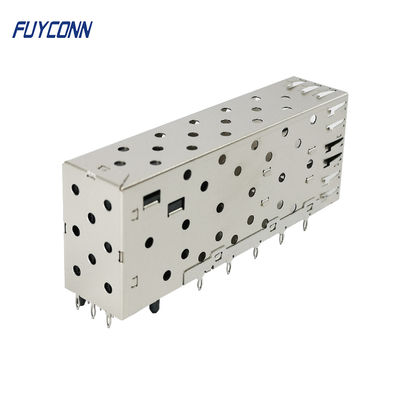

2x1 Ports SFP Female Connector 40 Pin Press-Fit PCB Mount

Duży Obraz : 2x1 Ports SFP Female Connector 40 Pin Press-Fit PCB Mount

Szczegóły Produktu:

Miejsce pochodzenia:	Guangdong, Chiny
Nazwa handlowa:	FUYCONN
Numer modelu:	SFP2009-28

Zapłata:

Minimalne zamówienie:	100
Cena:	$15

Kontakt

2x1 Ports SFP Female Connector 40 Pin Press-Fit PCB Mount

Opis

Typ:	SFP, złącze światłowodowe SFP	Połączenie:	Naciśnij szpilkę
Numer terminala:	40 PIN	Liczba portów:	2*1 podwójne porty
Płeć:	Kobieta	Kolor:	Nick Silver
Materiał izolatorowy:	PBT	Kołek stykowy Materiał:	Brąz fosforowy
Feets:	Naciśnij szpilkę	LUKA LUKA:	NIE
Obecna ocena:	1AMP	wytrzymać napięcie:	500 V przez minutę
Rezystancja izolatora:	500 mΩ min (w DC500V)	Odporność na kontakt:	35 mΩ Max
Temperatura pracy:	-55°C do +105°C
Podkreślić:	SFP female connector 40 pin , press-fit SFP connector PCB mount , 2x1 SFP connector press-fit

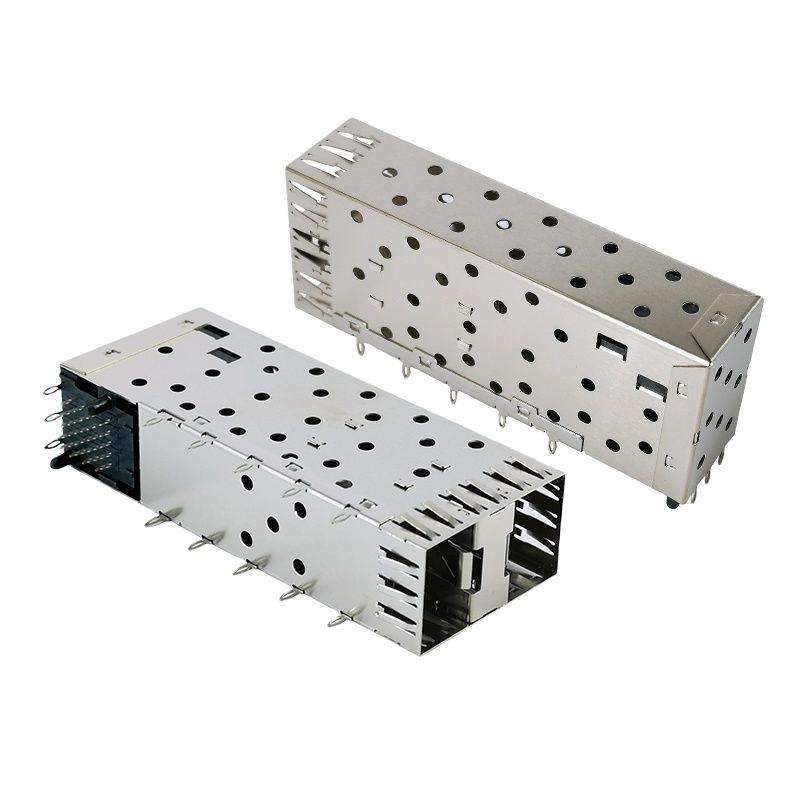

2x1 Ports Housing Shielded SFP Cage With Connector Press-Fit Stackable 2-by-1 Multi-Port Female SFP Connector W/o Light Pipe

Product Overview

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a primary optical transceiver for data communication. Introduced in early 2000, it replaced the gigabit interface converter (GBIC) in fiber optic and Ethernet high-speed networking systems. Compliant with IEEE 802.3 and SFF-8472 specifications, SFP connectors handle up to 4.25Gb/s with greater port density than GBIC, earning the nickname "mini GBIC."

The SFP+ (SFP10) extension, introduced in 2006, supports data rates up to 10Gb/s (IEEE802.3ae, SFF-8431/8432). Both SFP and SFP+ support Gigabit Ethernet, Fibre Channel, SONET, OTN, and other standards, with copper and optical variants available.

Product Features

Feature	Specification
Product Name	SFP Connector
Product Line	Small Form-factor Pluggable
Connector Gender	Female Centronic Connector
Contact Type	Small Form-factor Pluggable
Number of Position	40pin
Ports	2*1 2 Ports
Contact Material	Phosphore Bronze
Finish	Nickel Silver
Insulation Material	PBT
Lightpipe	No

Electrical Specifications

Specification	Value
Current Rating	1AMP
Withstanding Voltage	500v for one minute
Insulator Resistance	500MΩ min (at DC500V)
Contact Resistance	35MΩ Max
Operation Temperature	-55°C to +105°C

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Networking
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet
Servers

Packing & Shipping

Strong Packaging Options:

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips

Company Profile

Dongguan Fuyconn Electronics Co., Ltd specializes in IT and communication connectors since 2004. Our product range includes 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series, and RJ series with over 1,000 models available.

Our UL- and SGS-certified products are RoHS compliant with a defect rate below 0.5%. Our ISO 9001:2008 and ISO 14001:2004 certified 5,000 sqm factory features R&D, molding, plastic injection, stamping, and assembly production lines.
